Stark LP-4040 Industrial RO Membrane Element (High Flux 5L/min, 99.2% Rejection)
- モデル STK-LP4040 (Polyamide Composite Material)
- High Performance: 99.2% Salt Rejection with 5L/min High Flux.
- Energy Efficient: Operates at low pressure (0.9 MPa / 130 psi) to reduce energy costs.
- Stock Status: In Stock. 100 units available for immediate shipping.
- Special Offer: Bulk discount applies for orders of 10+ units.
商品説明
Stark High-Efficiency LP-4040 Industrial RO Membrane
The Stark STK-LP4040 is a “Low Pressure” (LP) series aromatic polyamide compound membrane element designed for commercial and industrial water treatment applications. It is engineered to deliver high permeate flow while operating at lower pressures, significantly reducing energy consumption and pump operating costs.
This standard 4-inch membrane element (4″ x 40″) is a universal fit for glass fiber or stainless steel pressure vessels, making it an ideal drop-in replacement for existing RO systems.
Key Features and Benefits
- Superior Salt Rejection: With an average rejection rate of 99.2%, it effectively removes dissolved salts, organics, and bacteria, ensuring high-quality permeate water.
- High Flux Output: Producing up to 5L/min (approx. 1900 GPD), this membrane maximizes water production efficiency.
- Energy Saving Design: Operates efficiently at a low testing pressure of 0.9 MPa (approx. 130 psi), lowering the load on high-pressure pumps compared to standard membranes.
- Durable Structure: Features a robust 7.8 m² effective membrane area with a 31mil-pp feed spacer to minimize fouling.
Stock Alert: Immediate Dispatch Available

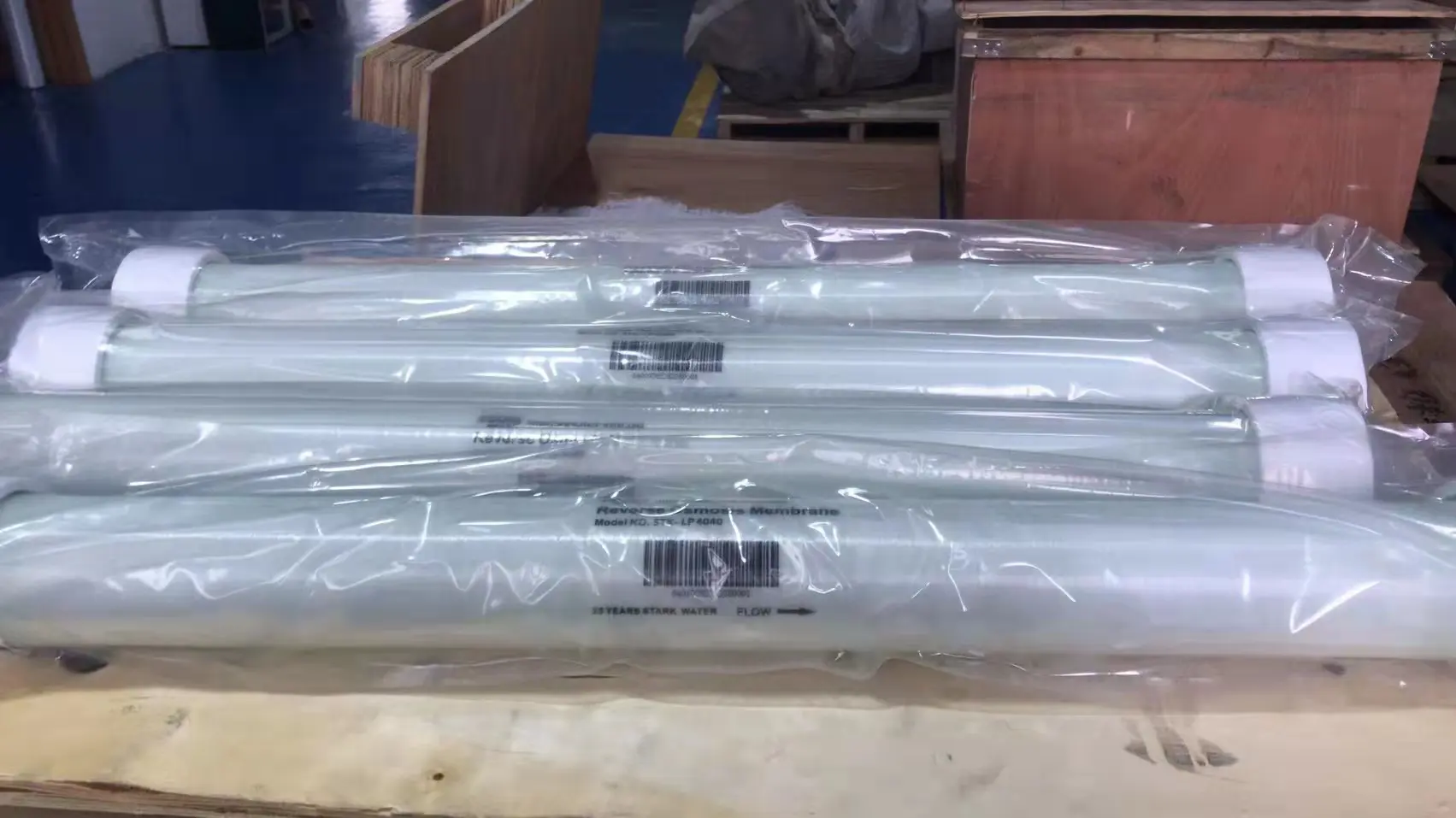

We currently have a spot inventory of 100 units ready to ship. This batch allows for zero lead time, helping you avoid costly system downtime.
Bulk Discount: Contact our sales team for exclusive pricing on orders of 10 units or more.
製品パラメーター
| モデル | LP-4040 |
| メンブレン素材 | Polyamide Composite Material |
| 寸法 | Length: 1016mm (40″) | Diameter: 100mm (4″) |
| Effective Area | 7.8 m² |
| Average Permeate Flow | 5L/MIN (~1900 GPD) |
| Stable Rejection Rate | 99.2% (Min 99.0%) |
| 試験圧力 | 0.9 MPa |
| pH Range | Operating: 3-10 | Cleaning: 2-11 |
| Feed Water Max Temp | 45°C |
*Test Conditions: 1000ppm NaCl solution, 25°C temperature, pH 7.5, and 20% recovery rate. Performance may vary ±15%.
適用業種
The Stark LP-4040 is a versatile industrial component designed for a wide range of commercial and light industrial water treatment scenarios. Its balance of high flow and low energy consumption makes it the ideal choice for:
- Commercial Spot-Free Car Wash Systems:Produces ultra-pure water with low Total Dissolved Solids (TDS), ensuring a spot-free rinse finish for vehicles without the need for manual drying.
- Water Vending Machines & Kiosks:The high flow rate (5L/min) ensures rapid tank filling, allowing machines to serve more customers efficiently while maintaining fresh, great-tasting water.
- Laboratory & Hospital Water Purification:Acts as the primary pre-treatment stage for ultrapure water systems, effectively removing bacteria, pyrogens, and inorganic ions to meet strict clinical standards.
- Food & Beverage Production:Provides consistent, high-quality ingredient water for bottling plants, breweries, and coffee shops, ensuring that the taste of the final product remains pure and unaltered.
- Light Industrial Boiler Feed:Removes hardness and silica from feed water to prevent scaling in low-pressure boilers, significantly improving thermal efficiency and preventing pipe blockages.
- Hydroponics & Agriculture:Filters out harmful heavy metals and excess salts from well water, creating a nutrient-neutral base perfect for mixing custom fertilizer solutions.
アドバンテージ・ワン
Ultra-Low Pressure Operation for Maximum Energy Savings
The Stark STK-LP4040 is engineered with advanced “Low Pressure” (LP) polyamide composite technology. Unlike standard RO membranes that require high operating pressures, this model achieves optimal performance at just 0.9 MPa (approx. 130 psi). Why is this a major advantage?- Reduced Electricity Costs: Lower operating pressure means your high-pressure pumps don’t have to work as hard, significantly cutting down energy consumption by up to 30% compared to standard membranes.
- Extended Equipment Lifespan: Lower pressure puts less stress on pumps, pipes, fittings, and O-rings. This reduces the risk of leaks and mechanical failures, leading to lower maintenance costs over the system’s life.
- Cost-Effective Upgrade: It allows system integrators to use smaller, more affordable pumps for new installations without sacrificing water production volume.
アドバンテージ2
Superior Permeate Quality with High Flux Technology
Productivity matters. The Stark LP-4040 features an optimized effective membrane area of 7.8 m², delivering a massive permeate flow rate of 5L/min (approx. 1900 GPD). This “High Flux” capability ensures you get more purified water in less time. Uncompromised Purity:- 99.2% Salt Rejection Rate: Utilizing a dense polyamide active layer, it effectively blocks dissolved salts, heavy metals, organics, and colloidal particles.
- Stable Performance: Even with variable feed water qualities (up to 1000ppm concentration), it maintains a minimum salt rejection of 99.0%, ensuring the safety and conductivity standards of your output water.
- Fouling Resistance: The smooth surface structure and 31mil feed spacer design help reduce the accumulation of contaminants, extending the cleaning cycle (CIP) intervals.
関連商品
関連商品
よくあるご質問
Q1: 逆浸透システムの寿命はどのくらいですか？
逆浸透膜システムの寿命は、水質とメンテナンスに左右されます。通常、膜は2～3年、システム自体は適切な手入れをすれば10年以上持ちます。
Q2: 異なる水質条件に応じてシステムをカスタマイズできますか？
はい、当社のシステムはすべてフルカスタマイズが可能です。お客様のウォーターレポートとアプリケーションのニーズを分析し、オーダーメイドのソリューションを提供します。
Q3: STARKの機器はどのような規格に準拠していますか？
当社の製品はCE、ISO 9001に準拠しており、ご要望に応じて特定の地域の規制や業界標準に適合するように設計することができます。
Q4: STARK ROシステムの納期はどのくらいですか。
標準システムは7～15日以内に出荷される。カスタマイズされた注文の場合、リードタイムは複雑さによって20～25日に延びることがあります。
Q5: 技術サポートや設置指導は行っていますか？
はい。完全な技術文書、ビデオによる遠隔指導を提供し、ご要望に応じてエンジニアを海外に派遣することも可能です。
Q6: 見積もりには何が含まれていますか？
お見積もりには、ROシステム一式、コントロールパネル、ポンプ、前処理ユニット、必要な付属品が含まれます。ご要望に応じて、設置用工具やスペアパーツも含まれます。
