Customization Liquid Mixing tank Price of Chemical Mixing tank Juice Blending tank Agitator Mixer

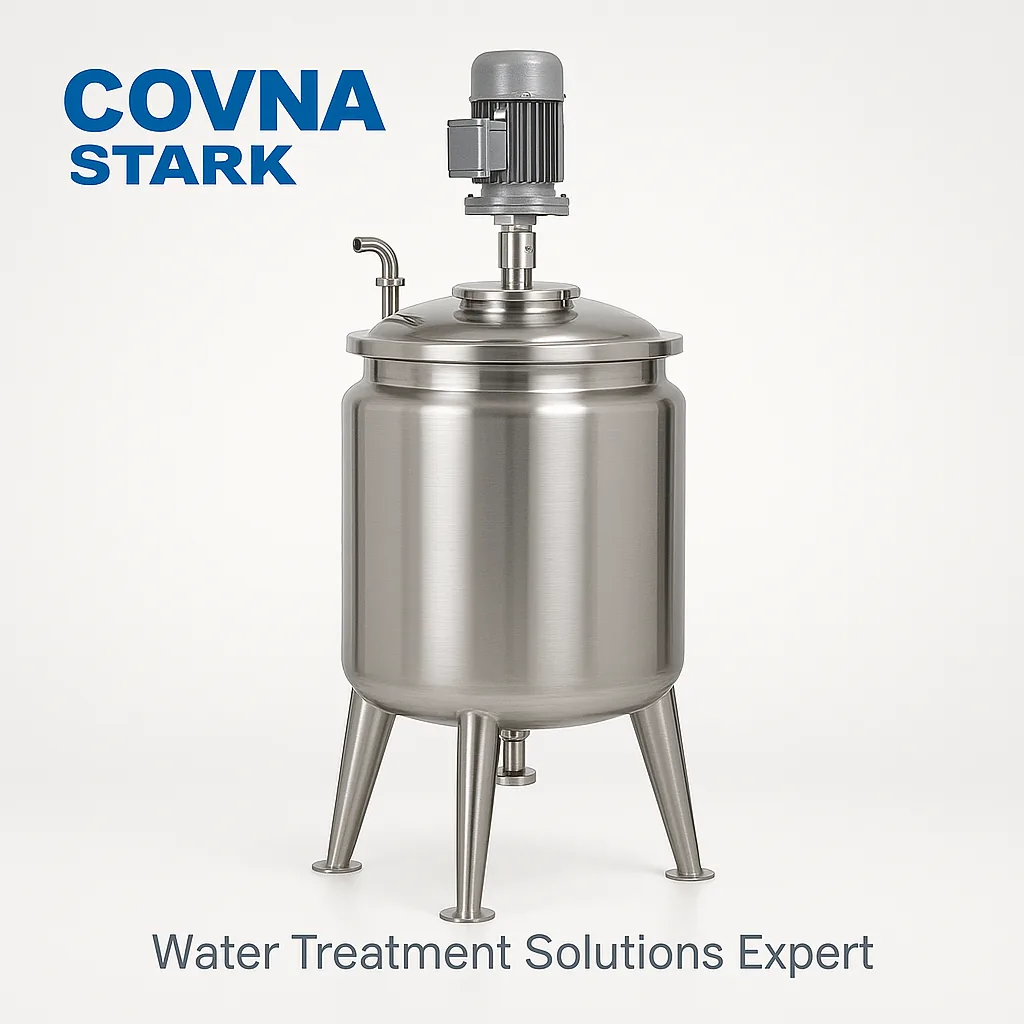

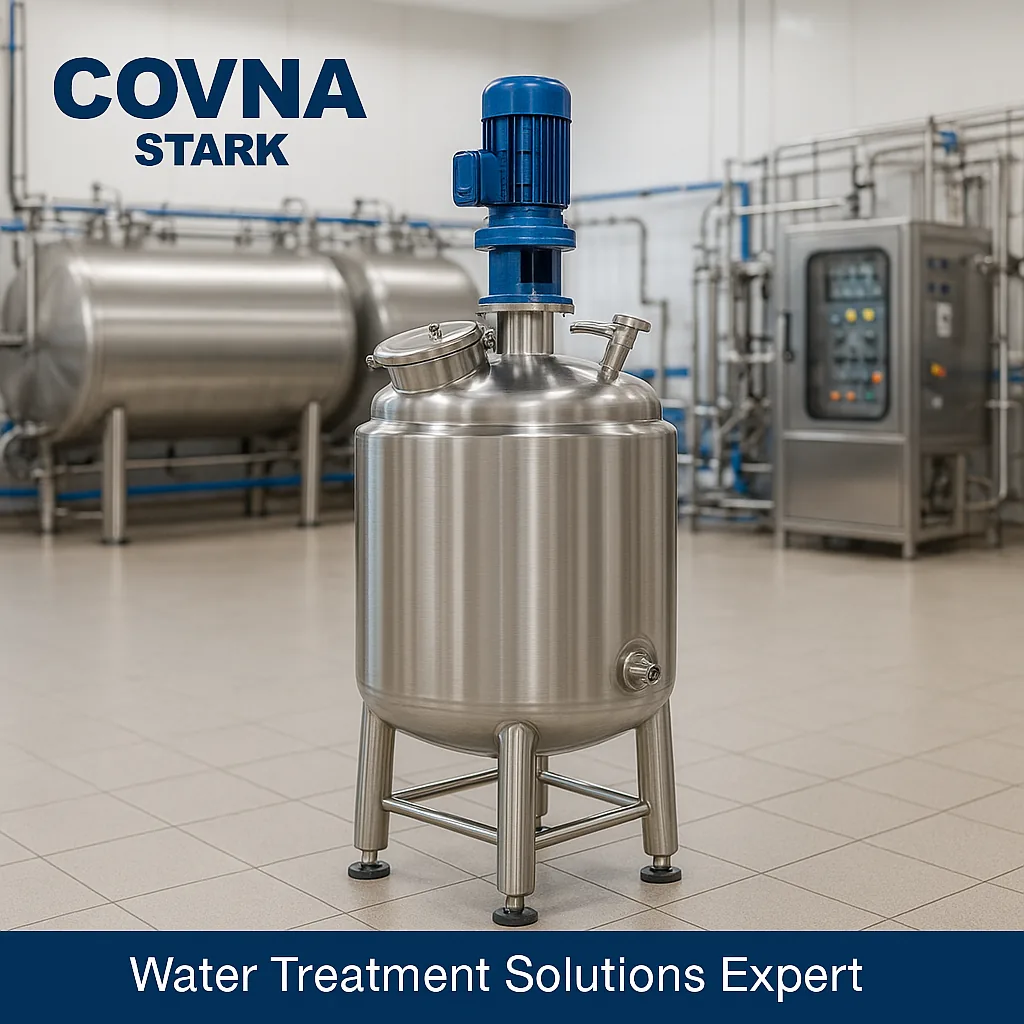

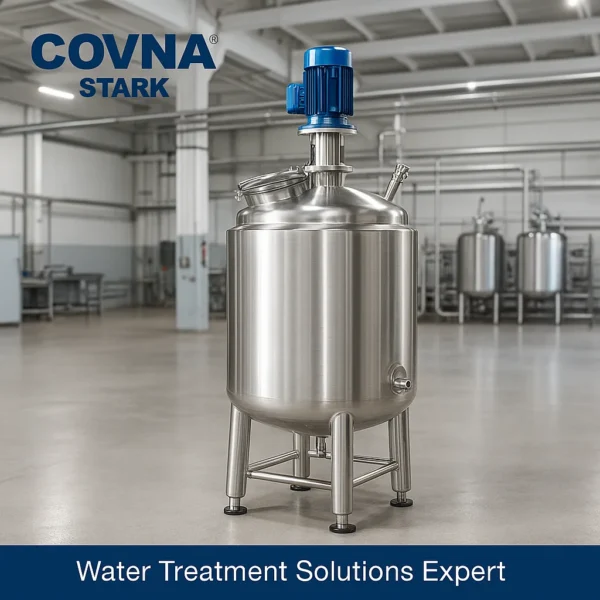

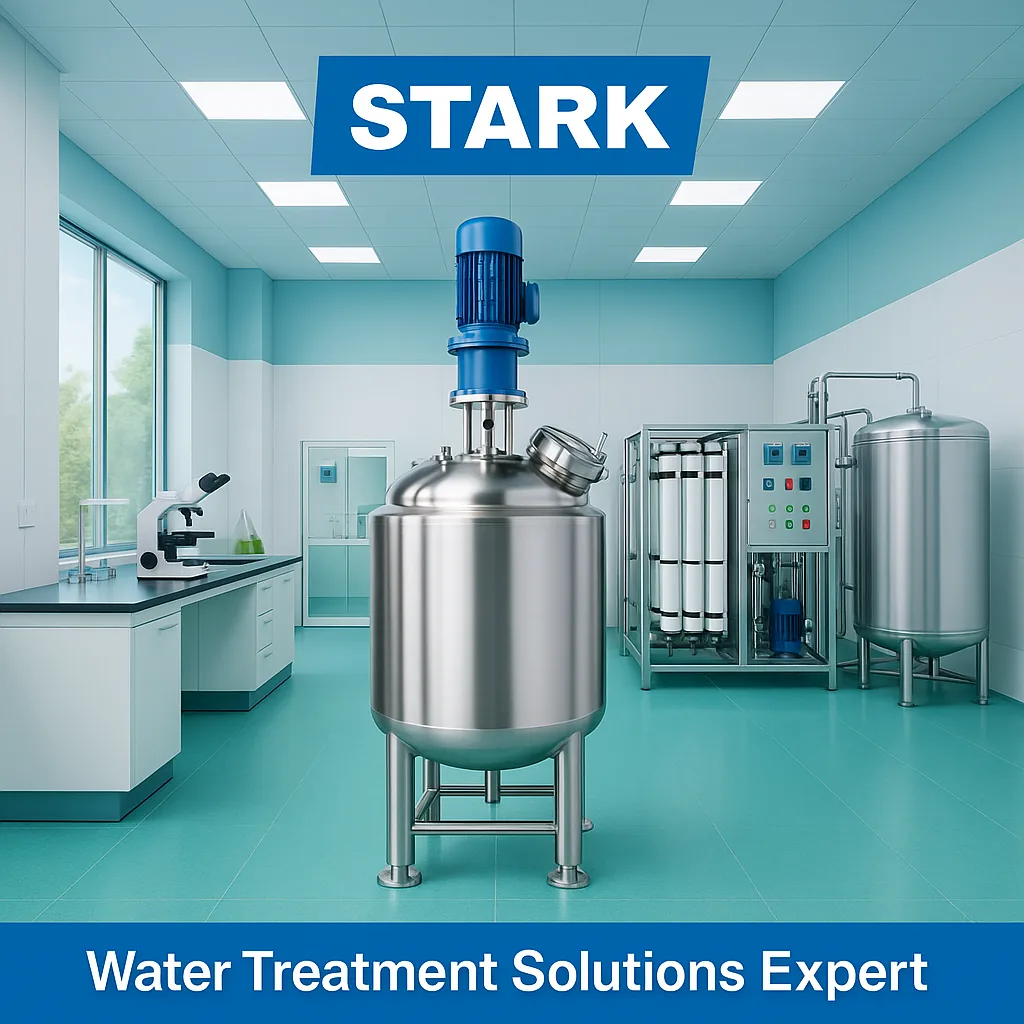

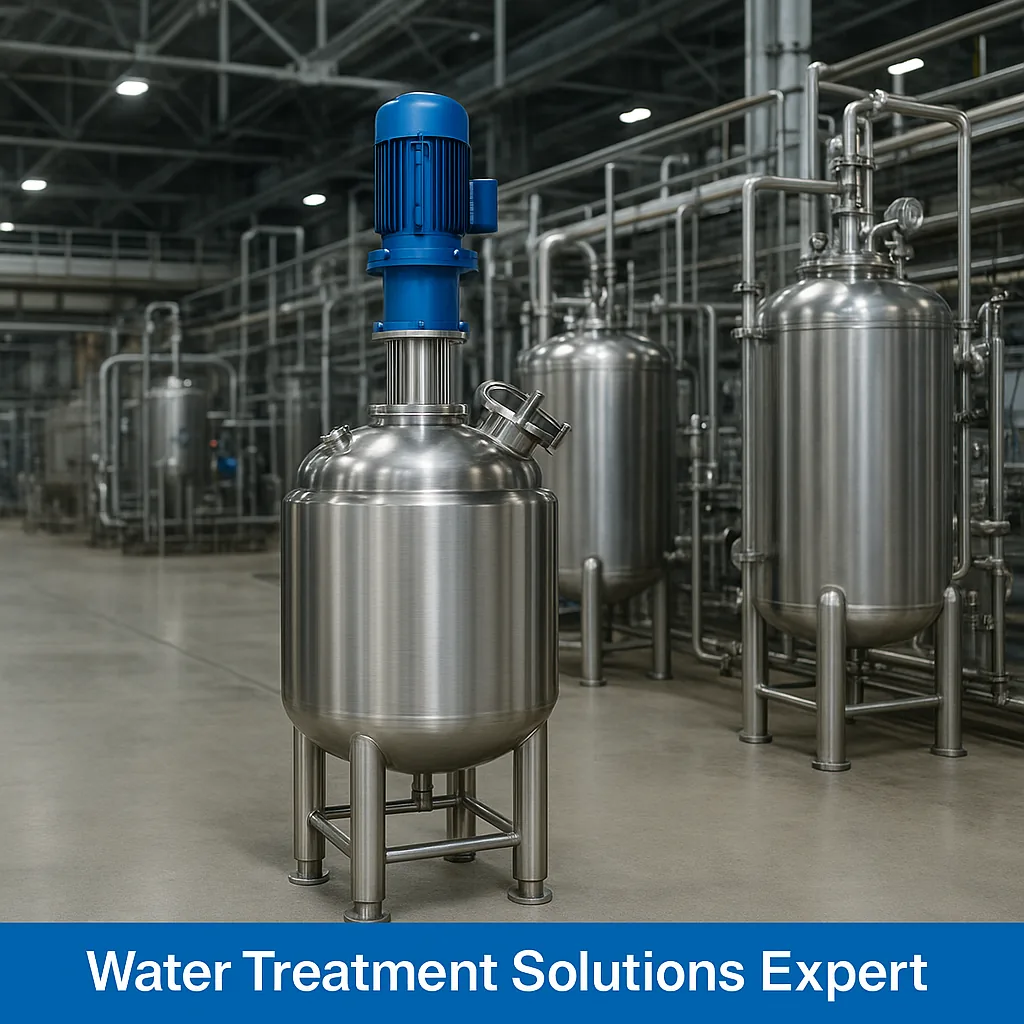

Stainless steel mixing tank with agitator for liquid blending in food, beverage, chemicals and cosmetics. Custom-built in SS304/316L with volume from 100–10,000 L, optional heating/cooling jacket, insulation, VFD speed control and CIP/SIP spray ball. Ideal for juice blending, polymer make-up and general liquid mixing.

クイック見積もり

商品説明

STARK designs and manufactures stainless steel mixing tank systems to deliver uniform, repeatable results across batch sizes. Depending on viscosity and process goals, the agitator can be propeller, turbine, or anchor/scraper with baffles to prevent vortexing. Variable-speed control allows gentle homogenization or high-shear dispersion when paired with a suitable impeller.

The vessel is fabricated from SS304/316L with sanitary welds and internal finish Ra ≤0.6–0.8 µm (typical). Options include a dimple or half-pipe heating/cooling jacket (steam, hot water, thermal oil or glycol), mineral-wool or PU insulation, load cells, temperature and level instrumentation, and top or bottom entry mechanical seal. A hinged manway and CIP spray ball speed up cleaning and changeover between recipes.

  • Open-top or closed-top with pressure/vacuum relief (atmospheric or slight pressure)
  • Sanitary tri-clamp ports, bottom outlet with butterfly/diaphragm valve
  • Skid or leg mounted; adjustable feet or casters
  • Control: local VFD panel or integrated PLC/HMI with interlocks and recipe steps

Note: Final sizing, impeller type and motor power are engineered from your product viscosity, target Reynolds number and heat load. We provide process datasheet review and CFD-inspired impeller selection on request.

製品パラメーター

技術パラメーター

MaterialsSS304 or SS316L (wetted parts); gasket EPDM/FKM; optional PTFE seats
Volume (usable)100 / 300 / 500 / 1000 / 2000 / 3000 / 5000 / 10,000 L (custom on request)
Finish (internal)Ra ≤0.6–0.8 µm; external 2B or hairline; electropolishing optional
AgitatorTop or bottom entry; propeller/turbine/anchor/scraper per duty; with baffles
Speed RangePropeller 100–1500 rpm; anchor 10–65 rpm (VFD adjustable)
Motor Power≈0.75–15 kW typical (engineered per volume and viscosity)
JacketDimple or half-pipe for heating/cooling; media steam/hot water/glycol/oil
InsulationPU/mineral wool with SS cladding (optional)
Design PressureAtmospheric standard; slight pressure/vacuum ±0.1–0.3 MPa optional
PortsTri-clamp manway, CIP spray ball, temperature PT100, level, vent, bottom outlet
MountingSkid or 3/4-leg stand; adjustable feet or casters
Electrical380–415 V/50 Hz or 460 V/60 Hz; protection IP55; food-grade cables
コンプライアンスFood-grade fabrication; pressure test & FAT; CE/UL components on request
NotesValues are typical/configurable. Final BOM confirmed after datasheet review.

適用業種

  • Food & Beverage — juice blending, syrup preparation, dairy mixing
  • Water Treatment — polymer/coagulant preparation, flocculant make-up
  • Chemical — emulsions, detergents, surfactants, additives
  • Cosmetics & Personal Care — lotions, shampoos, gel bases
  • Pharma & Biotech (non-pressure utility) — buffer/media prep
  • Paints & Coatings — dispersion and tint mixing

アドバンテージ・ワン

Advantage 1 — Uniform Mixing & Thermal Control

  • Impeller matched to viscosity and Reynolds number for fast homogenization
  • Baffles minimize vortex and improve axial/radial flow
  • Heating/cooling jacket sized for target ramp and hold times
  • VFD speed control enables gentle blend to high-energy dispersion

アドバンテージ2

Advantage 2 — Hygienic Build & Easy Cleaning

  • SS304/316L with sanitary welds; internal Ra ≤0.6–0.8 µm for quick rinse-down
  • CIP/SIP spray ball, sanitary manway and tri-clamp ports reduce downtime
  • Mechanical seal on agitator; food-grade gaskets and valves
  • Options: load cells, sight glass, lights, recipe control, safety interlocks
