160 m³/h UF Water Purifier | Hollow Fiber Ultrafiltration | STARK

160 m³/h UF Water Purifier using hollow-fiber membranes for turbidity, colloids and bacteria removal before RO or as a standalone polishing step. Skid-mounted racks with PLC/HMI automate backwash, air scour and CEB. PVDF/PS membranes, outside-in or inside-out configuration; recovery up to 90–95% depending on feed quality.

Описание товара

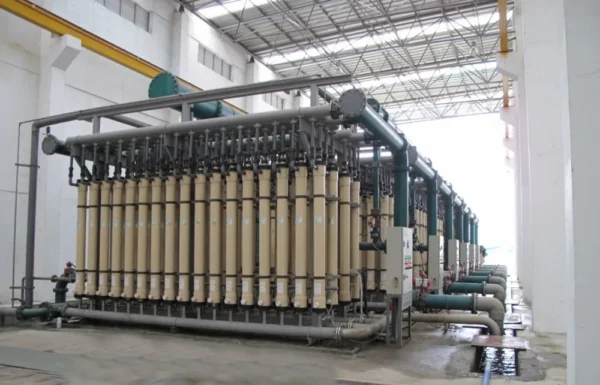

The STARK 160 m³/h ultrafiltration system delivers high and stable filtrate quality for municipal, industrial and reuse applications. Hollow-fiber UF with nominal pore size ~0.01–0.03 μm forms a physical barrier to suspended solids, algae, most bacteria and high-molecular organics while keeping operating pressure low.

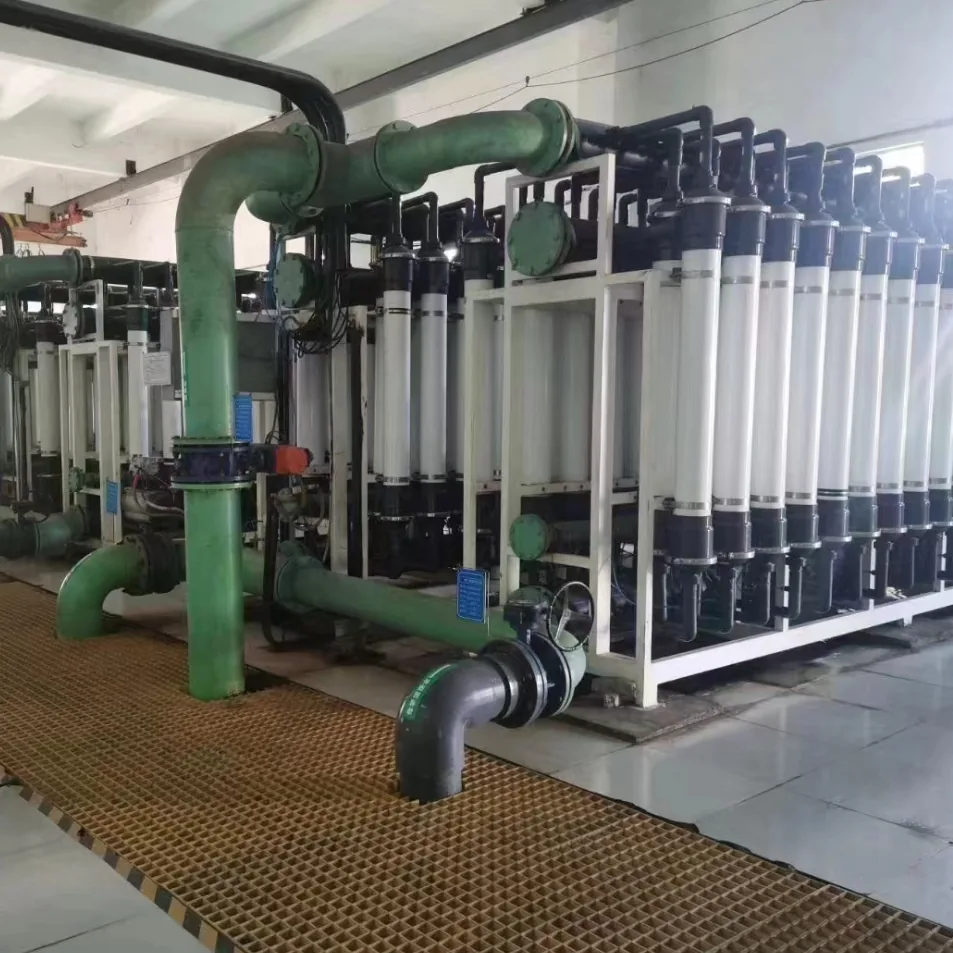

Each rack integrates backwash pumps, air scour and automated chemically enhanced backwash (CEB); periodic CIP (e.g., NaOCl/citric) restores permeability. The PLC sequences transmembrane pressure (TMP) limits, flux, backwash intervals and chemical dosing. Options include inline coagulation for difficult feeds, integrity testing, and UF→RO interlocks.

  • Consistent filtrate SDI < 3 for RO pretreatment (when designed with inline coagulation/flux setpoints)
  • Modular racks allow future capacity expansion beyond 160 m³/h
  • Food-grade or industrial build; SS/UPVC wetted piping per duty

Note: Final design is engineered from feed turbidity/SDI, temperature and fouling indices. Pilot or jar-test data can be used to set flux, recovery and chemical regime.

Параметры продукта

Technical Parameters

Rated Capacity160 m³/h (continuous, configurable)
Membrane TypeHollow fiber UF, PVDF or PES/PS, hydrophilic
Pore Size (nominal)~0.01–0.03 μm
Operation ModeDead-end with periodic backwash & air scour; CEB/CIP programmable
Typical Flux60–120 L/m²·h (temperature & feed dependent)
TMP Range0.05–0.25 MPa typical; max per module spec
Восстановление~90–95% (accounting for backwash/CEB losses)
Feed Water LimitsTurbidity ≤ 50 NTU typical (higher with coagulation); SDI < 8 recommended
BackwashEvery 20–60 min; filtrate/air; 30–60 s cycles
ChemicalsCEB/CIP: NaOCl, citric, NaOH (ranges per membrane OEM); pH 2–12 service
Filtrate QualityLow turbidity; bacteria removal to log levels typical of UF membranes
ControlsPLC/HMI with TMP/flux control, integrity/pressure interlocks, data logging
MaterialsSkid SS304; process piping SS/UPVC/CPVC; instruments SS/PTFE seals
Electrical380–415 V/50 Hz or 460 V/60 Hz; VFD pumps
FootprintModular racks; layout per site & access aisles
ПримечанияValues are typical; final BOM & guarantees confirmed after feed study.

Применимая отрасль

  • Municipal water & groundwater plants — clarification & polishing
  • Industrial RO pretreatment — stable SDI and biofouling control
  • Bottled water & beverage — particulate removal and clarity
  • Wastewater tertiary treatment & reuse — low-turbidity filtrate
  • Desalination pretreatment — seawater/brackish UF before SWRO/ BWRO
  • Surface water treatment — algae & pathogen barrier

Преимущество один

Advantage 1 — Stable Water Quality & RO-Ready

  • UF barrier (~0.01–0.03 μm) for turbidity, colloids and most bacteria
  • SDI control supports high RO uptime and longer membrane life
  • Inline coagulation option for challenging surface waters
  • Automatic integrity & pressure interlocks for safe operation

Преимущество ДВА

Advantage 2 — Automated, Service-Friendly Operation

  • PLC/HMI sequences backwash, air scour, CEB and CIP with recipes
  • Modular racks, front access to pumps & valves for quick service
  • VFD pumps optimize energy at variable flux and temperature
  • Remote support & spare parts through STARK global network

Сопутствующие товары

ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ

Срок службы системы обратного осмоса зависит от качества воды и технического обслуживания. Как правило, мембрана служит 2-3 года, а сама система при правильном уходе может прослужить более 10 лет.

Да, все наши системы полностью настраиваются. Мы анализируем ваш водный отчет и потребности в применении, прежде чем предложить индивидуальные решения.

Наша продукция соответствует стандартам CE, ISO 9001 и может быть разработана в соответствии с конкретными региональными нормами или отраслевыми стандартами по запросу.

Стандартные системы поставляются в течение 7-15 дней. Для индивидуальных заказов срок выполнения может увеличиться до 20-25 дней в зависимости от сложности.

Да. Мы предоставляем полную техническую документацию, удаленное руководство по видеосвязи и можем направить инженеров за границу по запросу.

Наше предложение включает в себя полную систему обратного осмоса, панель управления, насосы, блоки предварительной очистки и всю необходимую арматуру. Инструменты для установки и запасные части могут быть включены по запросу.
