Stainless Steel Mechanical Filter Housing – Multimedia Sand & Carbon Vessel

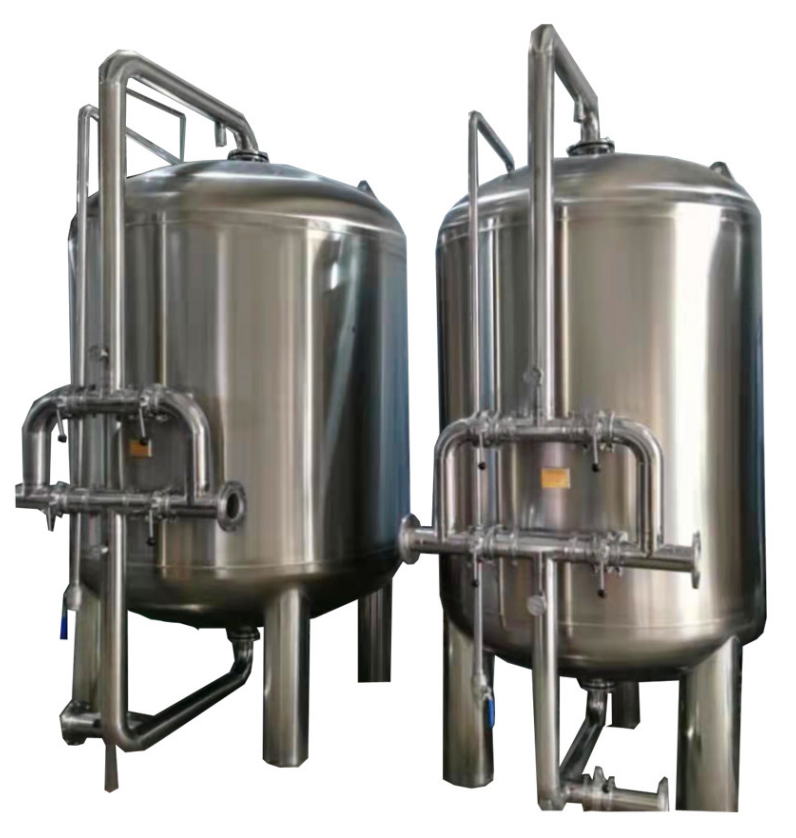

Старк Mechanical Filter Housing (STK1 Series) is an industrial-grade vessel designed for external face piping systems. Constructed from heavy-duty SUS304/316L (up to 4.0mm thick), it features side flange ports (DN25-DN125) and is ideal for large-scale multimedia, sand, and activated carbon filtration.
Описание товара
Designed for Industrial Face Piping & Valve Manifolds.
Unlike standard tanks with top-mounted control heads, the Stark STK1 Mechanical Filter is engineered for high-flow industrial applications. It features standard Side Flange Ports (Inlet/Outlet), allowing engineers to install external butterfly valve manifolds. This design offers lower pressure drop, higher flow rates, and easier integration into PLC-controlled automation systems.
Versatile Media Compatibility: Whether used as a Multimedia Filter (removing turbidity), an Activated Carbon Filter (removing chlorine/organics), or a Water Softener, the internal distribution system is optimized for efficient backwashing and uniform flow.
Примечание: This product is the Filter Vessel Only. External piping, valve manifolds, and filter media are sold separately or can be customized upon request.
Media Filling Guide & Nozzle Layout:
Correct media volume is key to performance. For a calculator showing the exact kg/L of Quartz Sand, Activated Carbon, or Resin needed for each tank size, please reference the technical data at our manufacturing division:
Stark Manufacturing – Mechanical Filter Tech Specs
.
Параметры продукта
Below are the specifications for our STK1 Mechanical Filter series. Includes reference data for media filling.
| Модель | Size (DxH) | In/Outlet | Расход (м³/ч) | Ref: Sand | Ref: Carbon | Ref: Resin | Action |
|---|---|---|---|---|---|---|---|
| STK-Φ500×1900 | Φ500×1220 | DN40 | 2-3 | 250kg | 75kg | 175L | Inquiry |
| STK-Φ800×2050 | Φ800×1220 | DN50 | 5-8 | 650kg | 200kg | 425L | Inquiry |
| STK-Φ1000×2500 | Φ1000×1500 | DN50 | 8-12 | 1200kg | 400kg | 800L | Inquiry |
| STK-Φ1200×2650 | Φ1200×1500 | DN50 | 12-17 | 1750kg | 575kg | 1150L | Inquiry |
| STK-Φ1600×3250 | Φ1600×1800 | DN80 | 20-30 | 3650kg | 1225kg | 2525L | Inquiry |
| STK-Φ2000×3450 | Φ2000×1800 | DN100 | 32-47 | 5700kg | 1900kg | 3800L | Inquiry |
*Wall Thickness: 1.5mm – 4.0mm. Note: Price includes vessel only; external piping and valves are sold separately.
Применимая отрасль
- Pre-Treatment for RO Systems:
Serves as the primary Multimedia Filter (MMF) or Carbon Filter (ACF) to protect Reverse Osmosis membranes from suspended solids and chlorine. - Cooling Water Side-Stream:
High-flow filtration to remove particulate matter from cooling tower loops, maintaining heat exchanger efficiency. - Industrial Wastewater:
Used for tertiary treatment (depth filtration) or activated carbon adsorption of organic pollutants before final discharge.
Преимущество один
Ready for External Valve Manifolds
Designed for industrial scalability, the STK1 Mechanical Filter features Side Flange Connections (DN25-DN125) instead of a simple top opening.This allows for the installation of external face piping with butterfly or diaphragm valves, enabling high flow rates and easy integration into automated PLC control systems.Преимущество ДВА

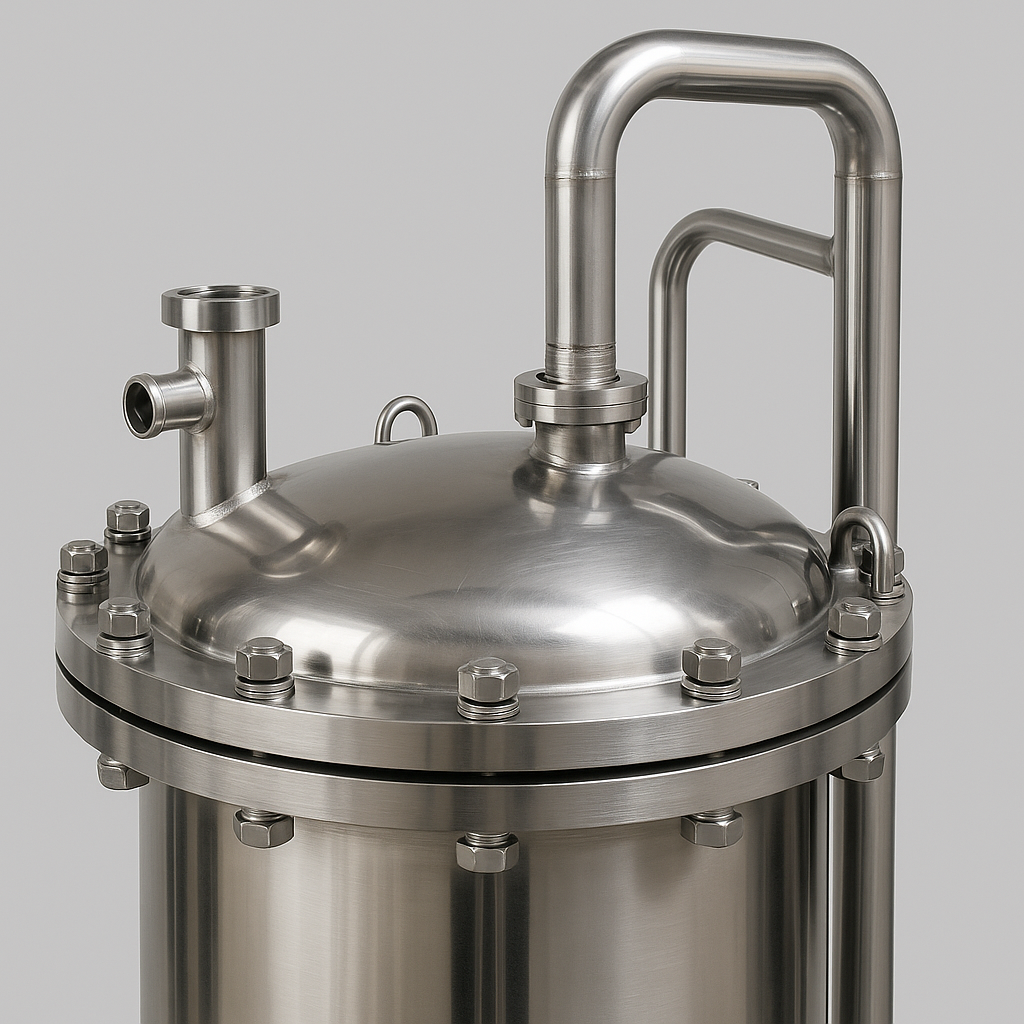

Heavy-Duty Vessel Construction
Built to withstand the rigors of frequent backwashing, our housings feature a wall thickness of up to 4.0mm (for larger models).This heavy-duty construction minimizes vessel expansion and contraction fatigue, offering a significantly longer service life compared to standard FRP or thin-wall metal tanks.Сопутствующие товары
Похожие товары
- Изделия из нержавеющей стали
Industrial Heavy-Duty Multi-Cartridge Filter Housing – Flange Connection Series
Подробнее - Изделия из нержавеющей стали
Stainless Steel Single Bag Filter Housing – Clamp Closure Series
Подробнее
ЧАСТО ЗАДАВАЕМЫЕ ВОПРОСЫ
Q1: Как долго служит система обратного осмоса?
Срок службы системы обратного осмоса зависит от качества воды и технического обслуживания. Как правило, мембрана служит 2-3 года, а сама система при правильном уходе может прослужить более 10 лет.
Q2: Можно ли настроить систему под различные условия воды?
Да, все наши системы полностью настраиваются. Мы анализируем ваш водный отчет и потребности в применении, прежде чем предложить индивидуальные решения.
Q3: Каким стандартам соответствует оборудование STARK?
Наша продукция соответствует стандартам CE, ISO 9001 и может быть разработана в соответствии с конкретными региональными нормами или отраслевыми стандартами по запросу.
Q4: Каков срок поставки систем обратного осмоса STARK?
Стандартные системы поставляются в течение 7-15 дней. Для индивидуальных заказов срок выполнения может увеличиться до 20-25 дней в зависимости от сложности.
Q5: Предоставляете ли вы техническую поддержку или руководство по установке?
Да. Мы предоставляем полную техническую документацию, удаленное руководство по видеосвязи и можем направить инженеров за границу по запросу.
Q6: Что входит в ваше предложение?
Наше предложение включает в себя полную систему обратного осмоса, панель управления, насосы, блоки предварительной очистки и всю необходимую арматуру. Инструменты для установки и запасные части могут быть включены по запросу.
