20FT Containerized RO System for Compact and Mobile Water Treatment

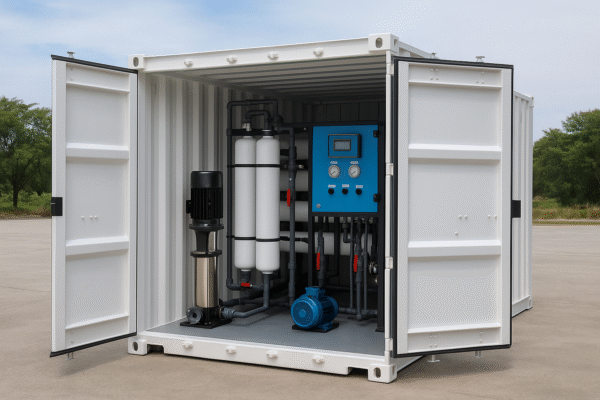

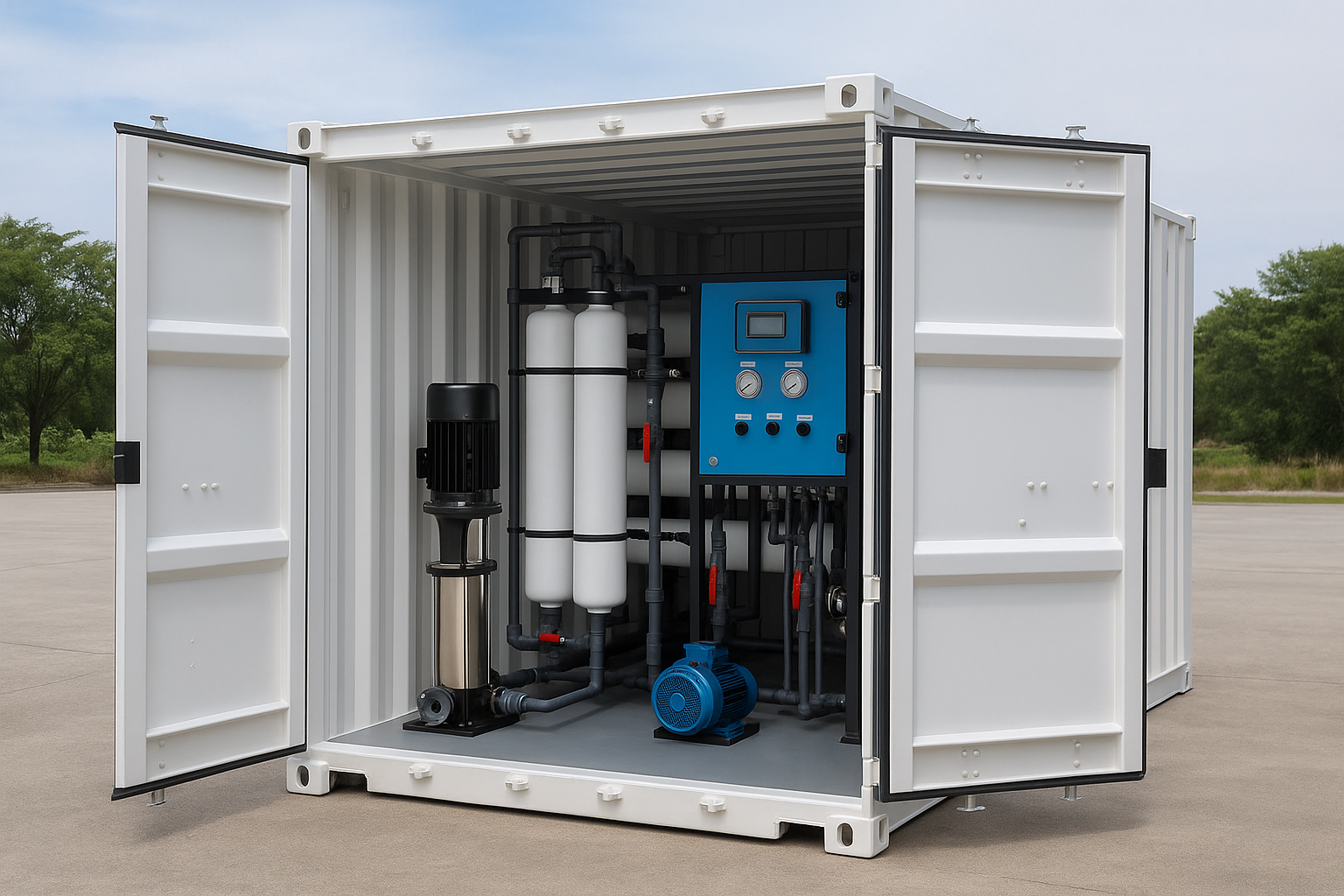

The STARK 20FT Containerized RO System is a plug-and-play mobile water purification unit, engineered for fast deployment in space-constrained or infrastructure-limited environments. This self-contained system integrates all critical components—filtration, high-pressure pump, membranes, and control panel—inside a standard 20-foot ISO container.
Designed to treat brackish or lightly contaminated surface water sources, it delivers consistent and safe water output for industrial, construction, agricultural, and emergency response applications. Whether used at remote job sites or as part of a mobile utility fleet, this compact unit ensures rapid installation and reliable performance.
Product Description
The 20FT Containerized RO System is a fully engineered and pre-assembled mobile water purification solution, specifically designed for customers who require fast installation, modular deployment, and reliable operation in remote or rugged environments. It eliminates the need for complex civil infrastructure or on-site equipment assembly.

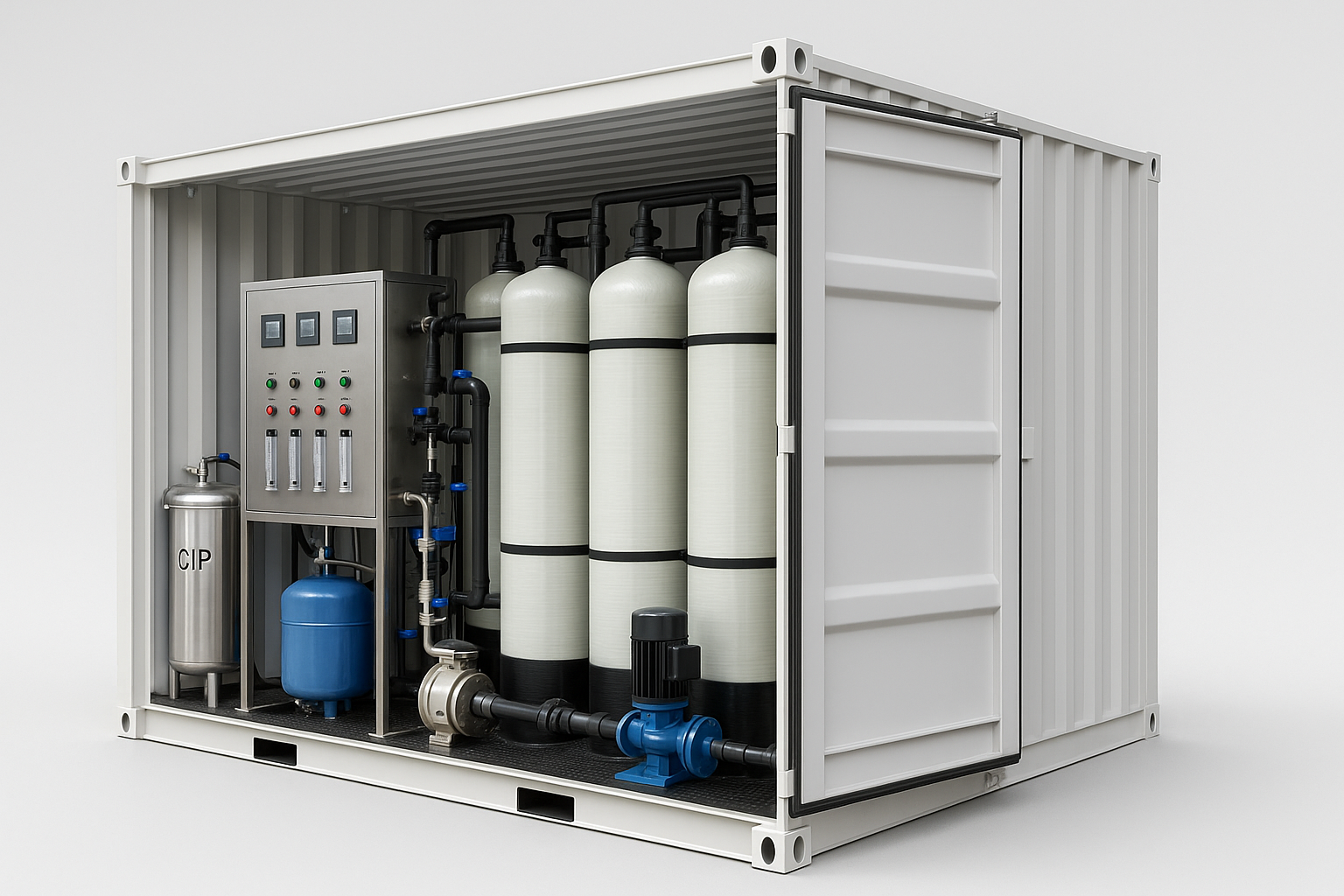

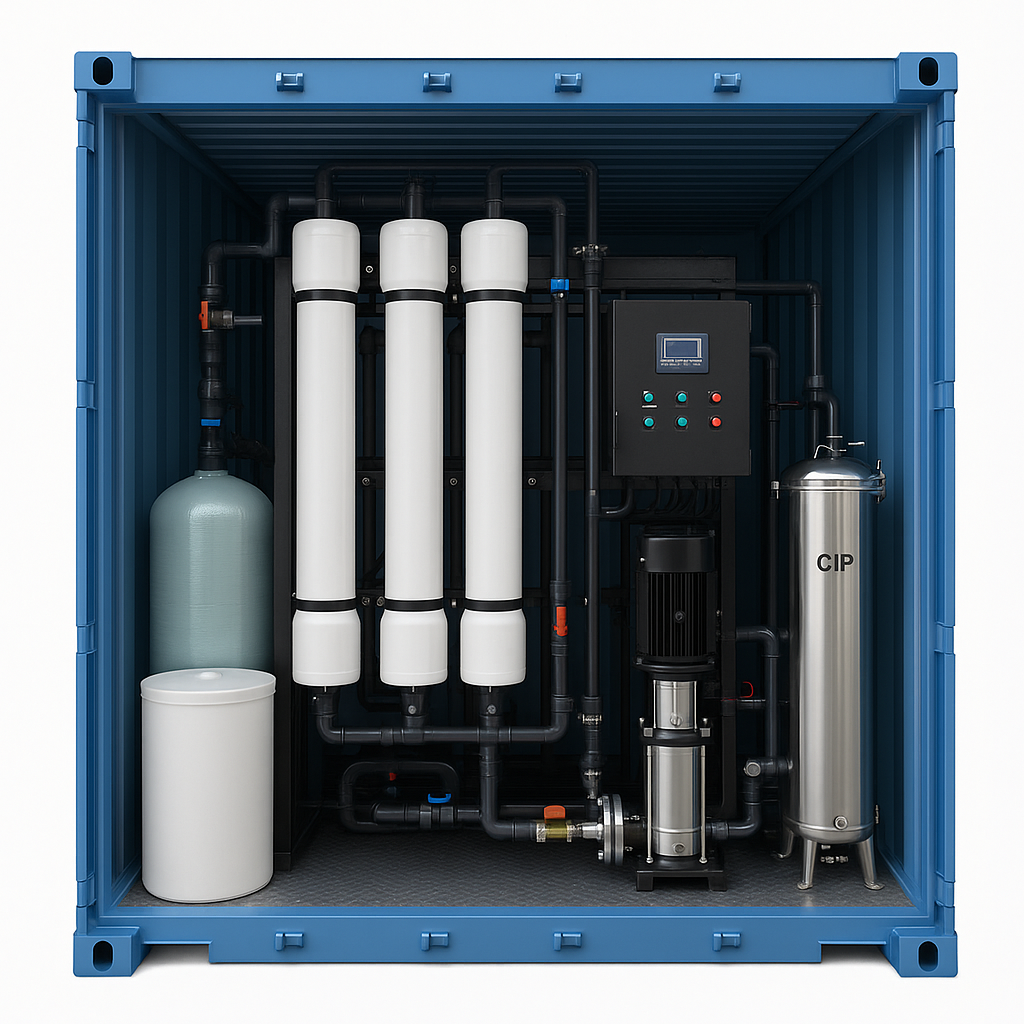

All major treatment processes are housed within a 20-foot ISO-certified container, including:
- Multimedia or cartridge pre-filtration (based on feedwater type)
- High-pressure RO pump with anti-corrosive build
- High-rejection RO membranes (4040 or 8040 configuration)
- Fully integrated PLC-based control system with touchscreen HMI
- CIP (Clean-In-Place) system for automated membrane cleaning and extended service life
- Lighting, ventilation, and temperature regulation systems
The containerized RO system is thermally insulated and features corrosion-resistant paneling for long-term durability. External connections for raw water inlet, treated water outlet, and power supply are standardized to simplify site-level integration.
With a typical recovery rate between 60–75% depending on raw water quality, this system is suitable for treating well water, river water, brackish sources, or pre-treated surface water. The unit can be installed and started within hours, making it ideal for short-notice deployments or temporary infrastructure projects.
Product Parameter
| Specification | Details |
|---|---|
| Container Size | 20FT ISO standard, insulated and corrosion-resistant |
| Flow Capacity | 500 LPH – 3,000 LPH (customizable) |
| Raw Water Type | Brackish water, well water, surface water (TDS ≤ 5000 ppm) |
| Recovery Rate | 60% – 75% depending on feedwater conditions |
| Rejection Rate | ≥ 97% for dissolved solids |
| RO Membranes | 4040 or 8040 type (2–4 membranes, brand optional) |
| Pre-treatment | Multimedia filter, cartridge filter, antiscalant dosing (optional) |
| CIP System | Integrated tank, pump, and valves for automated membrane cleaning |
| Control Panel | PLC with touchscreen HMI and alert system |
| Power Supply | 380V / 50Hz (other voltages customizable) |
| Piping Material | UPVC standard, optional SUS304 / SUS316L |
| Operating Conditions | -10°C to +50°C with optional air conditioning |
| Installation | Plug-and-play, external water/power connection ports |
Applicable Industry
- Construction and Mining Sites – Provides temporary but robust water purification for field-based labor camps and infrastructure projects in remote areas.
- Disaster Relief and Emergency Response – Ideal for NGOs, UN missions, or government agencies requiring fast water supply after floods, earthquakes, or droughts.
- Off-Grid Agricultural Facilities – Supports irrigation or livestock operations in isolated farming zones where municipal water is unavailable.
- Military and Field Hospitals – Mobile water treatment for defense and humanitarian missions where quality and speed are both critical.
- Island and Coastal Developments – Can be used for desalination or brackish water treatment in tourism, resort, or port facilities lacking water pipelines.
Advantage One
Advantage TWO
Related Products
Related products
- Container reverse osmosis system
Dual-Stage Containerized RO System for High TDS and Critical Water Purification
Add to Quote - Container reverse osmosis system
40FT Containerized RO System for Industrial and Export Water Treatment Projects
Add to Quote - Container reverse osmosis system
STARK industrial Containerized RO Purification Systems Containerized Chemical Water Reverse Osmosis System
Add to Quote
FAQ
Q1: How long does the reverse osmosis system last?
The lifespan of a reverse osmosis system depends on water quality and maintenance. Typically, the membrane lasts 2–3 years, while the system itself can last over 10 years with proper care.
Q2: Can the system be customized based on different water conditions?
Yes, all our systems are fully customizable. We analyze your water report and application needs before providing tailored solutions.
Q3: What standards does STARK equipment comply with?
Our products comply with CE, ISO 9001, and can be designed to meet specific regional regulations or industry standards upon request.
Q4: What is the delivery time for STARK RO systems?
Standard systems are shipped within 7–15 days. For customized orders, lead time may extend to 20–25 days depending on complexity.
Q5: Do you provide technical support or installation guidance?
Yes. We provide full technical documentation, remote guidance via video, and can dispatch engineers internationally upon request.
Q6: What is included in your quotation?
Our quotation includes the full RO system, control panel, pumps, pre-treatment units, and all necessary fittings. Installation tools and spare parts can be included upon request.
