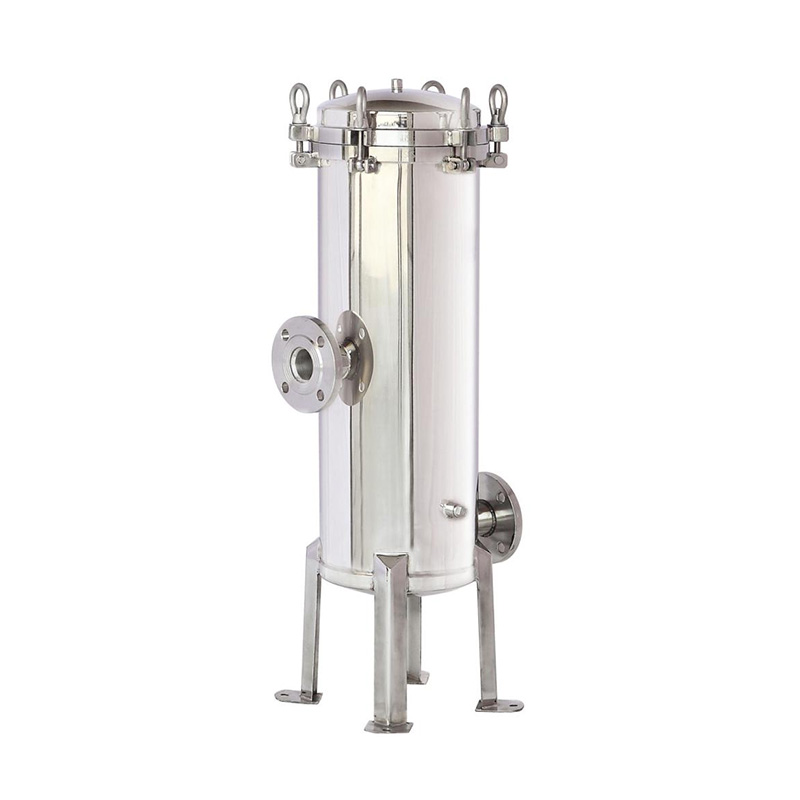

Cartridge Filter Water Casing Flange Type Quick Fitting PP Sediment Water Filter Ss 316 Cartridge Filter Housing With Legs
This stainless steel cartridge filter housing with flange-type quick fitting and support legs is designed for high-performance water filtration. It accommodates PP sediment filter cartridges and is ideal for pretreatment in reverse osmosis systems and other industrial applications.
Product Description
Reliable Cartridge Filter Housing for Industrial and Commercial Water Filtration
STARK’s Cartridge Filter Housing is a robust and corrosion-resistant filtration unit engineered to remove suspended particles, rust, silt, and other contaminants from raw water. Made of high-quality SS316 stainless steel, this unit offers long-lasting operation in challenging environments, including seawater pretreatment and chemical processing.
Designed with a flange-type quick fitting structure, this housing supports fast installation and maintenance. It accommodates standard PP sediment cartridges, offering flexible filtration configurations depending on flow rate and water quality requirements. The integrated support legs ensure stable floor-mounted operation, ideal for containerized and skid-based systems.
Key Features:
- Stainless Steel SS316 Construction – corrosion resistant for harsh environments
- Quick Fitting Flange Design – easy cartridge replacement and minimal downtime
- Universal Cartridge Compatibility – accepts various 10″, 20″, 30″, or 40″ filters
- Reinforced Support Legs – for fixed floor installation
- Leak-proof Sealing – high-pressure resistant housing body
- Compact and Modular – suitable for standalone or integrated use
Product Parameter
| Parameter | Specification |
|---|---|
| Product Name | Stainless Steel Cartridge Filter Housing |
| Material | SS316 (Optional: SS304) |
| Filter Type | PP Sediment Filter Cartridge |
| Connection | Flange Type Quick Fitting |
| Operating Pressure | 0.1 – 1.0 MPa |
| Operating Temperature | 5 – 55°C |
| Cartridge Length | 10” / 20” / 30” / 40” (optional) |
| Legs | Included – Stainless Steel Frame |
| Installation | Floor-mounted |
| Flow Capacity | Up to 20 m³/h (depending on configuration) |
Applicable Industry
- Reverse Osmosis Pretreatment – sediment removal before RO membranes
- Industrial Water Filtration – food, beverage, chemicals, power plants
- Seawater Desalination – pre-filtration of suspended solids
- Pharmaceutical Manufacturing – feed water particle filtration
- Textile and Dyeing – removal of impurities before dye baths
- Cooling Water Systems – particulate control and corrosion reduction
- Commercial Buildings – centralized sediment filtration
Advantage One
Flexible Configuration for Various Cartridge Sizes
Compatible with multiple cartridge lengths and filtration levels, this housing offers great flexibility for adapting to flow rate and filtration precision needs in different industries.Advantage TWO
Industrial-Grade Durability with Minimal Maintenance
SS316 construction ensures long service life, while the quick fitting design simplifies maintenance and reduces downtime, helping your operations remain efficient and uninterrupted.Related Products
Related products
FAQ
Q1: How long does the reverse osmosis system last?
The lifespan of a reverse osmosis system depends on water quality and maintenance. Typically, the membrane lasts 2–3 years, while the system itself can last over 10 years with proper care.
Q2: Can the system be customized based on different water conditions?
Yes, all our systems are fully customizable. We analyze your water report and application needs before providing tailored solutions.
Q3: What standards does STARK equipment comply with?
Our products comply with CE, ISO 9001, and can be designed to meet specific regional regulations or industry standards upon request.
Q4: What is the delivery time for STARK RO systems?
Standard systems are shipped within 7–15 days. For customized orders, lead time may extend to 20–25 days depending on complexity.
Q5: Do you provide technical support or installation guidance?
Yes. We provide full technical documentation, remote guidance via video, and can dispatch engineers internationally upon request.
Q6: What is included in your quotation?
Our quotation includes the full RO system, control panel, pumps, pre-treatment units, and all necessary fittings. Installation tools and spare parts can be included upon request.
