Product Description

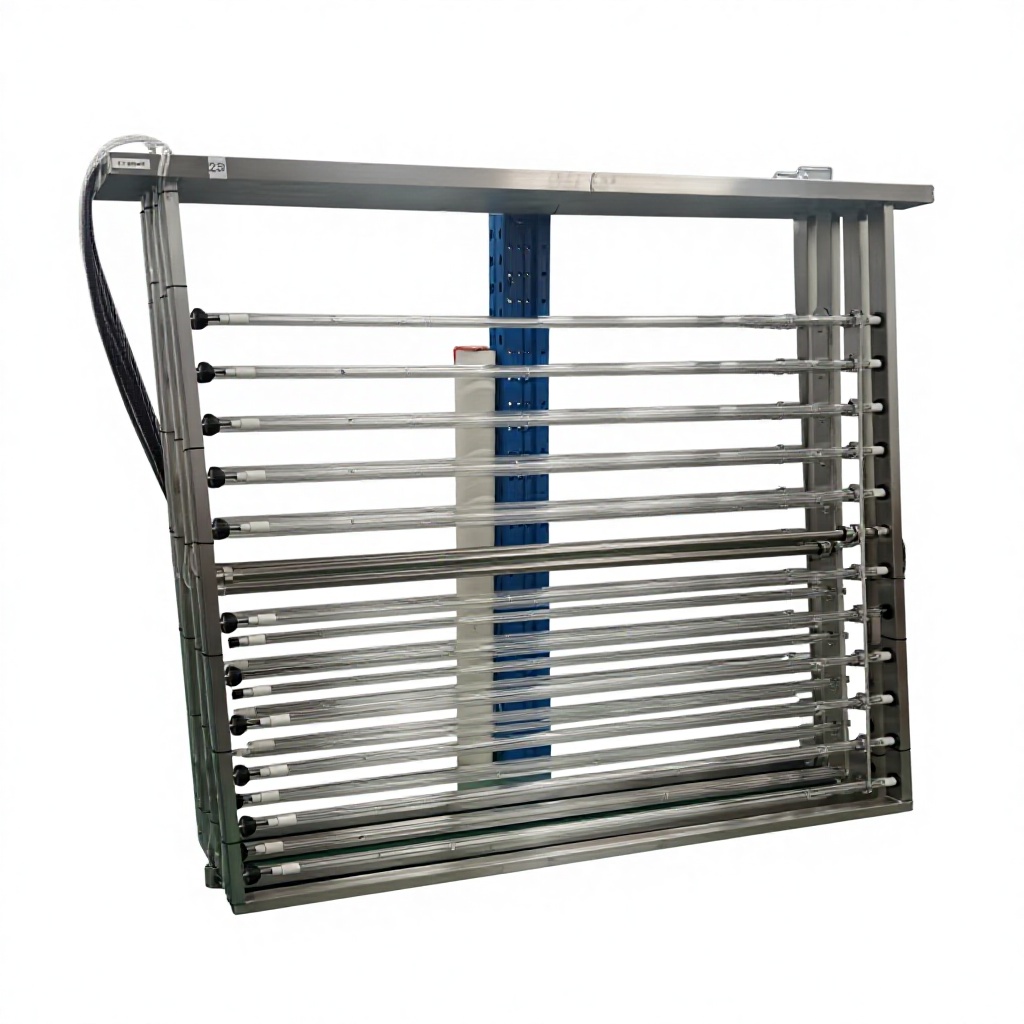

Open Channel UV Disinfection System
The Open Channel UV Disinfection System is designed for efficient disinfection of municipal and industrial wastewater. Ultraviolet light effectively inactivates bacteria, viruses, and other microorganisms without the use of chemicals.
The system is widely used in wastewater treatment plants, reclaimed water projects, and drainage systems. With a modular design and stainless steel structure, it ensures stable operation, high sterilization efficiency, and low maintenance cost.
COVNA STARK provides reliable UV disinfection equipment suitable for different flow capacities and project requirements.
Product Parameter
| Parameter | Specification |
|---|---|
| UV Lamp Power | 320 W |
| Number of Lamps per Frame | 10 pcs |
| Number of Frames | 8 sets |
| Total UV Lamps | 80 pcs |
| UV Wavelength | 253.7 nm (UVC) |
| Effective UV Dose | ≥ 400 μW/cm² |
| Frame Material | Stainless Steel 316 |
| Quartz Sleeve Thickness | 1.5 mm |
| Quartz Sleeve Transmittance | ≥95% |
| Waterproof Grade | IP68 |
| Installation Type | Open Channel |
| Control System | Automatic Water Level Control |
| Application | Wastewater & Sewage Disinfection |
Applicable Industry
The Open Channel UV Disinfection System is widely used in:
Municipal wastewater treatment plants
Industrial wastewater treatment systems
Reclaimed water reuse projects
Sewage discharge channels
Environmental water treatment projects
Advantage One
System Features
Intelligent Water Level Control
The system is equipped with a liquid level controller. According to the water level, the system automatically activates UV lamps at different heights to prevent lamp damage caused by exposure when the water level is low.
UV Lamp Failure Alarm
The system includes a UV lamp fault indication and alarm function, allowing operators to quickly identify malfunctioning lamps and maintain stable system operation.
High Corrosion Resistance
All frames are manufactured from 316 stainless steel, providing excellent corrosion resistance for long-term operation in wastewater environments.
High-Transparency Quartz Sleeve
The UV lamps are protected by high-purity quartz sleeves with a thickness of 1.5 mm and a light transmittance of over 95%, ensuring high UV output efficiency.
Waterproof Protection
Multiple sealing designs prevent water from entering electrical components. All cables are equipped with sealing rings and meet IP68 waterproof standards.
Safe Module Design
UV lamps and signal cables are sealed inside the disinfection module and are not exposed to wastewater or direct UV radiation.
Advantage TWO
Key Features
✔ Chemical-Free Disinfection
UV technology eliminates microorganisms without adding chemicals.
✔ High Sterilization Efficiency
Effectively removes bacteria, viruses, and pathogens.
✔ Energy Saving Design
Low power consumption and high UV utilization efficiency.
✔ Durable Stainless Steel Structure
Made of corrosion-resistant stainless steel for long service life.
✔ Easy Installation and Maintenance
Modular design allows quick installation and convenient maintenance.
